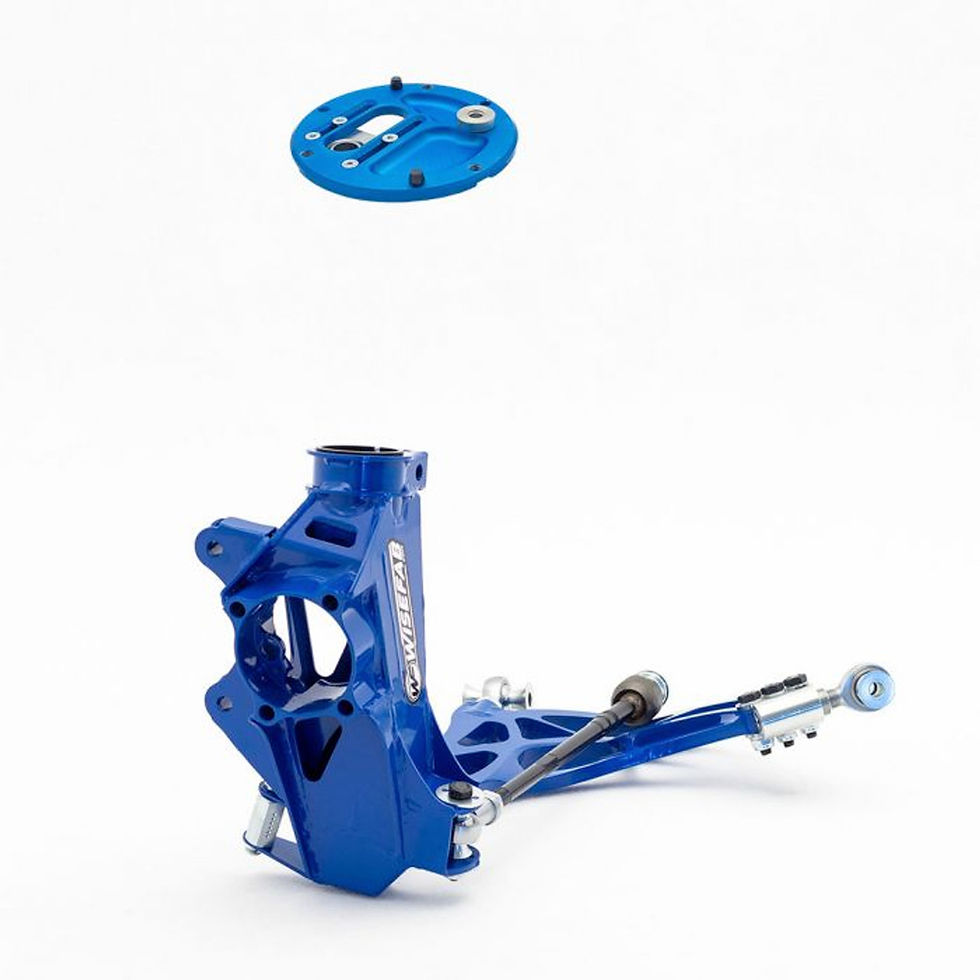

Wisefab F-Series Angle Kit

This kit is what the best in the business use to achieve 65 degrees of wheel lock. It is compatible with F2X, F3X and F8X series vehicles. Add your own coilovers and you are ready to drift with the deepest angle available.

Design features include easy adjustments, improved roll center, great camber curves and minimal bump steer through the extensively altered suspension design. ABS sensors can be retained and these kits have been tested at Drift-Week so they are proven to be at home even on the street.

To see how the Wisefab Lock kit fits your drift car check below the link [HERE]

Instllation Manual [HERE]


Kit includes:
Adjustable coilover upper mounts
Lower control arms
Tie rods
Mounting hardware for E9X hydraulic steering rack (Optional)
Brake adapters for M model brakes
Coilover adapter sleeve
Steering rack mounting hardware

Important Installation Notes:
Ride height is designed to be ~80mm from front subframe to ground
Dependent on rim width and ET, wider fenders or fender flares may be needed
Inner wheel wells do not need to be modified with tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 etc)
Minimum rim diameter is 17”.
Recommended backspacing is ~135mm (17“ ET45; 18“ ET35; 19“ ET20)

Setup Info:
Toe in/out: 0-2mm out
Camber: -4.5 +/-0.5
Caster: 6 +/-0.5
